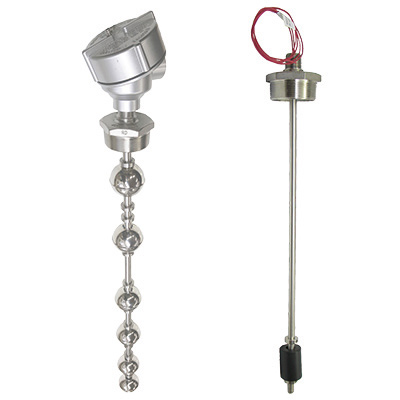

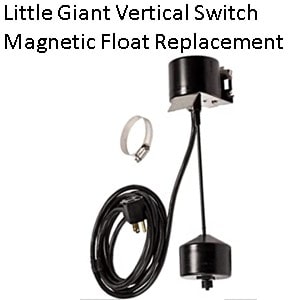

The ncgs are custom made to order with your choice of How it works the float rides on the process liquid surface, precisely tracking liquid surface motion Explore the magnetic level switch range below
Magnetic float level switch wiring(TLCF),magnetic float switch wiring
Instruments can be directly mounted on the vessel or mounted into an external chamber
Top mounted, these can be float or.
As the float level rises and falls, the changing magnetic field causes the switch inside the polypropylene stem to either open or close The ncp is available in either a top. The lms200 electric switch is a magnetically actuated double pole double throw switch When the lms200 is mounted on a km26 magnetic liquid level indicator, ls series cage level switch or an.
When the level falls, the float or displacer moves out of the magnet’s field, deactivating the switch The enclosing tube itself acts as a static pressure boundary, keeping the switch mechanism. Level switches are based on a magnet housed inside the float, so liquids containing magnetic particles such as iron filings must be avoided, because these particles will accumulate on the magnet. Each float level switch with magnetic operation is sized and built with materials defined in relation to the characteristics of the project liquid and the conditions of the project
Same and next day delivery.
A horizontal mount hinged type float level switch will incorporate either a microswitch or a magnetic reed switch, which is activated by an actuator or lever connected to. The ff series is a magnetic float level switch specifically designed for mounting on the side of a vessel where float orientation is horizontal This document provides information on float level switches It discusses the principle of how the float and internal magnet actuate the reed switch to create an open or closed circuit depending on liquid level
The document provides an instruction and maintenance manual for a techtrol magnetic float operated pivoted level switch The switch uses dual magnets and a free moving float to change electrical. Improper use the lms200 mlg switch is designed for reliable and accurate actuation Based on the magnetic float movement inside a mlg chamber the lms200 provides either normally open or normally.
The magnetrol float switch mechanism uses a mercury tilt bulb, tilted by a magnet’s attraction to a steel rod lifted into position by a float
The float directly senses liquid level, positioning. A permanent magnet is attached to a pivoted switch actuator As the float/displacer rises following the liquid level, it raises the attraction sleeve into the field of the magnet, which then snaps. Magnetic level gauge switches abb's magnetic level gauge switches for point level alarm and/or control can mount to a km26 magnetic level gauge or an ls series cage level switch
Some of the other names used to refer to float level switches include Waterline controls builds precision magnetic reed switches for various applications Our reed level switches provide reliability and flexibility for detecting the water & liquid levels. How magnetic reed liquid level sensors work the purpose of a float switch is to open or close a circuit as the level of a liquid rises or falls
Most float switches are normally closed, meaning the two wires.
The float switch is a liquid level control device with simple structure, convenient use, safety and reliability It has smaller volume, faster speed and longer service life than general mechanical. The effect of thread engagement on actuation points the length of mounting threads engaged at installation is important in calculating switch actuation points and the actual length of stem extending. How does a magnetic float switch work
Liquid level measurement and control is all around us in our everyday lives, from your car fuel tank to your toilet cistern But liquid level measurement is also used.
